BM filter insert

Specially designed for filtration of gear oils on cement mills

The CJC® BM Filter Insert is based on the technology of the B FIlter Inserts, but optimised for gear oil used on mills in the cement industry. The BM Filter Insert removes all four contamination types in the same process: particles, water, acidity, and varnish.
This Filter Insert is used with the CJC® Fine Filters HDU series.

Used for the maintenance of the below oil types:

• Gear oils, cement mills

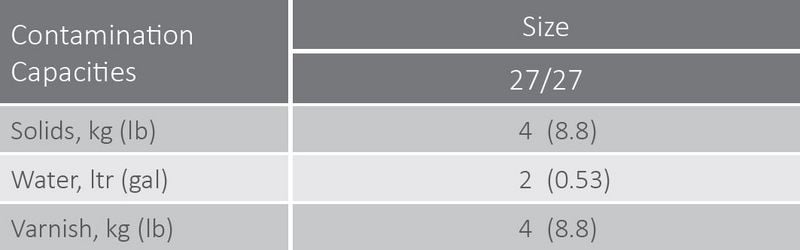

Contamination Capacities
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on the shape and density of particles and other variables within an oil system. When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

• The CJC® Filter Insert features:
  • Depth media of moulded cellulose
  • Highest Contamination Capacities (DHC)
  • 100% natural cellulose fibres from sustainable resources;
    no plastic, no metal, no chemical

• Removal of contaminants, 4-in-1:
  • Particles:
    Lifetime of both oil and component are increased considerably.
  • Oil degradation products:
    Avoid sticking valves, lacquering, and varnish on metal surfaces.
  • Water:
    Reduce the risk of micro-pitting, bacterial growth, sludge etc.
  • Acidity/TAN:
    Reduce oil ageing and wear on equipment.

• OEM requirements
  Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.
